Heavy Duty Pillar Drilling Machine
Eifco, one of the top pillar drilling machine manufacturer offers high precision drilling with heavy duty pillar drilling machine of finest quality and best in performance.

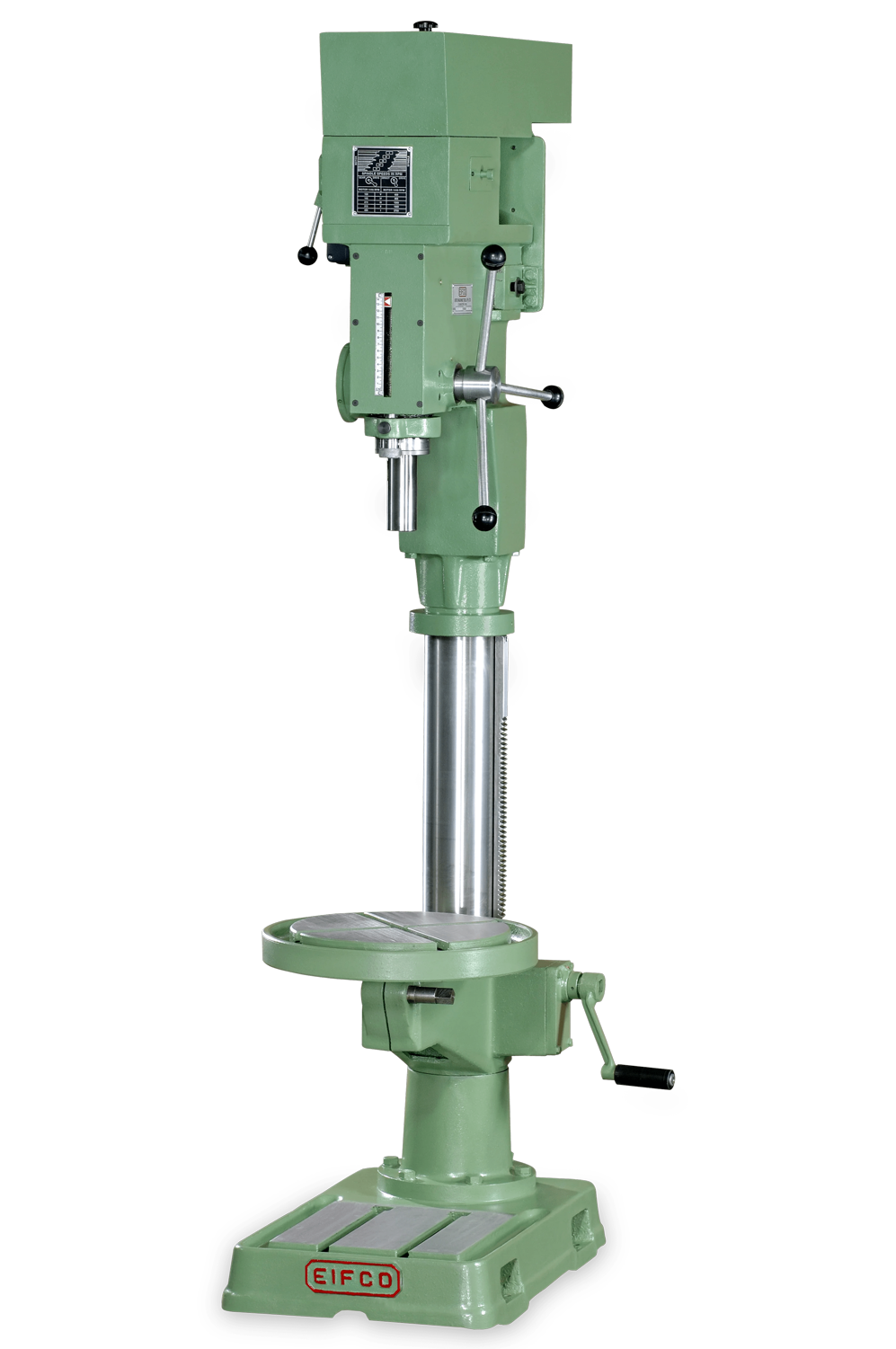

Choose from wide range of pillar drilling machines, P2/25/GT pillar drilling machine, P2/25/GTA auto feed pillar drilling machine, P4/ 38 auto feed drilling machine,EP 50 AG - all geared auto feed drilling machine,
The machine can be supplied as gang drilling version also with number of drilling heads over a common table, specification can be furnished on customer's request.
| Specification | P2/25 | P2/25/GT | P2/25/GTA | P4/38 | EP 50 AG | |
| SPECIFICATION: All dimensions are in mm |
|
|
|
|
|
| Drilling capacity in steel | 25 | 25 | 25 | 38 | 50 |
| Tapping capacity (optional) | - | M 16 | M 16 | M 22 | M 40 (inbuilt) |
| Morse taper in spindle | 3 | 3 | 3 | 4 | 4 |
| Spindle traverse | 140 | 140 | 140 | 178 | 200 |
| Pillar diameter | 120 | 120 | 120 | 139.7 | 175 |
| Distance between centre of spindle and Pillar front | 260 | 260 | 260 | 311 | 350 |
| Max. distance between spindle and table | 610 | 610 | 610 | 555 | 500 |
| Max. distance between spindle and base | 1080 | 1080 | 1080 | 1000 | 1170 |
| Table Working surface | 335 dia. | 335 dia. | 335 dia. | 370 dia. | 400 x 500 |
| Base Working surface | 318 x 300 | 318 x 300 | 318 x 300 | 370 x 330 | 400 x 460 |
| No. of spindle speeds | 5 | 10 | 10 | 5 | 12 |
| Range of spindle speeds (rpm) | 400 - 520 - 675 - 880 - 1142 | 100 - 142 - 210 - 310 - 450 - 600 - 852 - 1260 - 1860 - 2700 | 100 - 142 - 210 - 310 - 450 - 600 - 852 - 1260 - 1860 - 2700 | 170-250-360-490-680 | 25, 50, 75, 95, 150, 170, 190, 340, 475, 950, 600-1200 |
| Feed | Hand | Hand | Auto Feed | Auto Feed | Auto Feed |
| No. of Power feeds | - | - | 3 | 3 | 4 |
| Range of power feeds (mm/ rev) | - | - | 0.1 - 0.2 - 0.3 | 0.095 - 0.190 - 0.285 | 0.07 - 0.15 - 0.25 - 0.40 |
| Power of the spindle drive motor | 0.75 kW / 1 HP, 1400 rpm, 415 V AC, 3 Ph 50 Hz | 0.75 kW / 1 HP, 1400 rpm, 415 V AC, 3 Ph 50 Hz | 1.5 kW / 2 HP, 1400 rpm, 415 V AC, 3 Ph 50 Hz | 1.5 kW / 2 HP 1400rpm, 415 V AC, 3 Ph 50 Hz | 3 HP 2 Speed (720/1440) |
| Space occupied ( L x B x H ) |
850 x 600 x 1875 | 850 x 600 x 1975 | 850 x 600 x 2080 | 1100 x 640 x 2200 | 1200 x 715 x 2120 |
| Net weight | 360 Kg | 420 Kg | 610 Kg | 850 Kg | 1200 Kg |
